KVM Rackmount Console Kit

High-Performance 1U KVM Console Kit

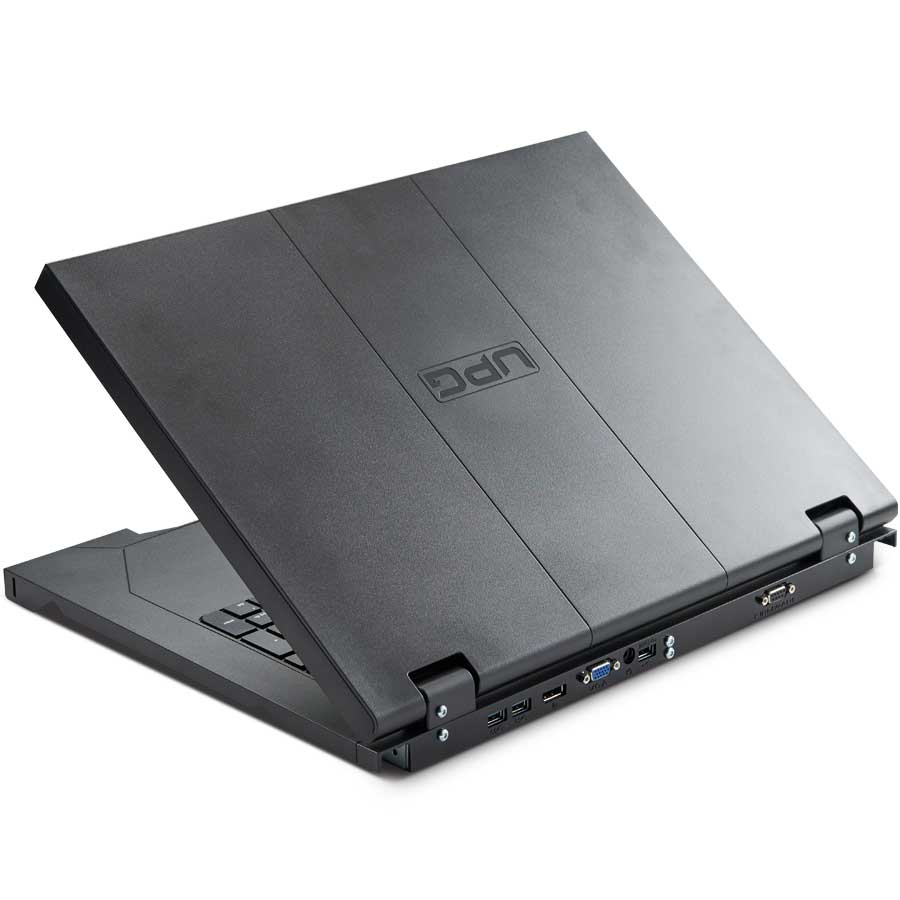

Combining a Full HD LCD monitor with keyboard and touchpad in a dense lightweight 1U form factor, the UPtyma KVM Console Kit allows you easily accessible control in 1U of rack space. You have the option of connecting the console to either a single system or a multi-port KVM switch to manage multiple systems. Worldwide TAA compliant, our KVM Rackmount Console Kit supports VGA and Display Port inputs and offers 2 USB 3.0 pass-through ports for media devices.

Product Features

  • 17.3-inch Screen
  • Full HD Flat Panel LCD
  • Low profile keyboard with integrated number pad
  • Multi-port KVM switch can be mounted behind in the
    same 1U of space
  • Includes a three-button Capacitive Touchpad and Scroll Bar
  • TAA (Made in USA) compliant version available
  • Variety of keyboard languages available upon request (UK, DE, FR, RU, JP, INTL, LA/ES, US, INDIA)
  • OSD Language Support (English, French, German, Japanese, Simple Chinese and Spanish)
  • Toolless rails for rack installation are included with each console kit allowing for quick installation
  • Supports video resolutions from 640 x 480 through 1920 x 1080 at 60 and 75 Hz refresh rates
  • Maximum Resolution 1920 x 1080

Purchase our high-performance KVM Console Kit

Technical Specs for KVM Rackmount Console Kit

Physical Dimensions
H x W x D
1.66 × 17.17 × 17.05 inches
4.23 × 43.61 × 43.3 cm
Weight
11.43 lbs (5.2 kg)
Shipping Dimensions
Package (L x W x D)
22.9 × 7.9 × 24.5 inches
Weight
25.3 lbs (11.45 kg)
Display
Type
TFT
Display
LCD with Backlight
Viewable (diagonal)
H = 178˚ V = 178˚
Maximum Resolution
1920 × 1080
Response Time
TR = 14ms TF = 11ms
Brightness
300cd/m²
Contrast Ratio
700 : 1
Supported Graphics
Full HD
640 × 480 through 1920 × 1080
Refresh Rates
60 and 75 Hz
Power Source
AC Adapter
90 to 264 VAC 47 to 63Hz 36W
Maximum Power
11W
Keyboard Keys
101, 102 or 106 Layout (Depending on Country)
Includes inverted T scroll keys and Windws keys
Keyboard/Touchpad Output
USB 2.0
USB Pass-through
USB 3.0
Environmental
Operating
0°C to 50°C
Temperature
Storage
-20°C to +60°C
Humidity
Operating
20% RH to 90% RH
Storage
10% RH to 90% RH
Altitude
Operating
5000 meters max
Storage
5000 meters max

Available Models

  • 17.3 1U RM Console – TAA AB101A
  • 17.3 1U RM Console – UK AB102A
  • 17.3 1U RM Console – DE AB103A
  • 17.3 1U RM Console – FR AB104A
  • 17.3 1U RM Console – IT AB105A
  • 17.3 1U RM Console – ES AB106A
  • 17.3 1U RM Console – DK AB107A
  • 17.3 1U RM Console – NO AB108A
  • 17.3 1U RM Console – SE/FI AB109A
  • 17.3 1U RM Console – CH AB110A
  • 17.3 1U Console – PT AB111A
  • 17.3 1U RM Console – BE AB112A
  • 17.3 1U RM Console – RU AB113A
  • 17.3 1U RM Console – JPN AB114A
  • 17.3 1U RM Console – INTL AB115A
  • 17.3 1U RM Console – LA/ES AB116A
  • 17.3 1U RM Console – CA AB117A
  • 17.3 1U RM Console – NL AB118A
  • 17.3 1U RM Console – US AB119A

Product Documents

  • UPtyma 17.3 User Guide Kazakh Download
  • UPtyma 173RM17A Inner Rail Installation Download
